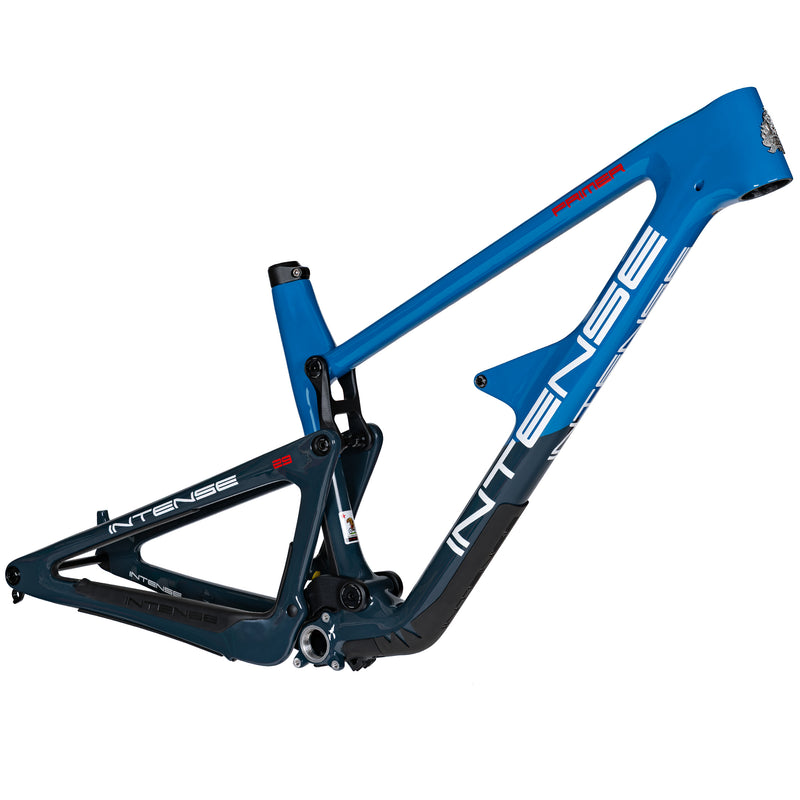

2027 Intense Primer Frameset

At first glance, the new Primer may resemble its predecessors, but the real magic lies beneath the surface. This latest iteration delivers unmatched performance with a reinforced carbon fiber layup and a newly redesigned, externally mounted top link. The wider top link enhances frame stiffness, providing a more responsive and confident ride on the trail. With 150mm front and 150mm rear travel, the Primer is engineered to excel on every trail, offering pure perfection with every ride.

Frame Specifixations And Capabilities

• Model Year: 2026
• Category: Trail
• Available Sizes: S, M, L, XL
• Available Colors: Blue
• Frame Weight (No Shock): (S) 5lbs 10oz / 2.55kg | (M) 5lbs 13oz / 2.63kg | (L) 6lbs / 2.72kg | (XL) 6lbs 3oz / 2.80kg
• Max Front Travel: 150mm
• Max Rear Travel: 150mm
• Headset: ZS44 Upper / EC49 Lower
• Seattube Diameter: 31.6mm
• Seatpost Clamp: 36.1mm (Intense Collar Only)
• Max Seatpost Insertion Depth: (S) 255mm | (M) 255mm | (L) 280mm | (XL) 280mm
• BB Shell Width: BSA 73mm
• Max Chainring: 34T
• Chainline: 52mm Shimano 12S | 52mm SRAM Eagle 12S | 55mm SRAM T-Type 12S
• Recommended Max Tire Width: 2.5"
• Brakes: Disc Brake Hydraulic, Post Mount / Direct
• Min Brake Rotor Size: 180mm
• Max Brake Rotor Size: 203mm (with adapter)
• Derailleur Hanger: UDH
• T-Type Compatible: Yes
• Rear Hub Spacing: 12mm x 148mm Boost
• Shock Size: 210mm x 55mm
• Front Shock Mount Hardware: 8mm x 20mm
• Rear Shock Mount Hardware: 8mm x 20mm

Frame And Shock Specifications

Frame

• Material: Size-Specific Carbon Layup
• Wheel Size: Full 29" Platform
• Front / Rear Travel: 150mm / 150mm
• Derailleur Hanger: UDH
• T-Type Compatible: Yes
• Cable Routing: Fully guided internal
• Bottom Bracket: Threaded BSA
• Frame Protection: Custom molded protection

RockShox Super Deluxe Ultimate

• Damper: RC2T
• Spring: DebonAir+ air spring
• Adjustments: High-Speed Compression / Low-Speed Compression / Low-Speed Rebound
• Modes: Open / Threshold
• Bottom-Out: Hydraulic Bottom Out
• Tune: Custom
• Eye-to-Eye / Stroke: 210mm x 55mm
• Mounting Hardware: Front: 8mm x 20mm / Rear: 8mm x 20mm

Fox Float X Factory

• Damper: GRIP
• Spring: EVOL LV Air Spring
• Adjustments: Low-Speed Compression / Rebound
• Modes: 2POS-ADJ
• Bottom-Out: Internal elastomer (MCU) bottom-out bumper
• Tune: Custom
• Finish: Kashima Coating
• Eye-to-Eye / Stroke: 210mm x 55mm
• Mounting Hardware: Front: 8mm x 20mm / Rear: 8mm x 20mm

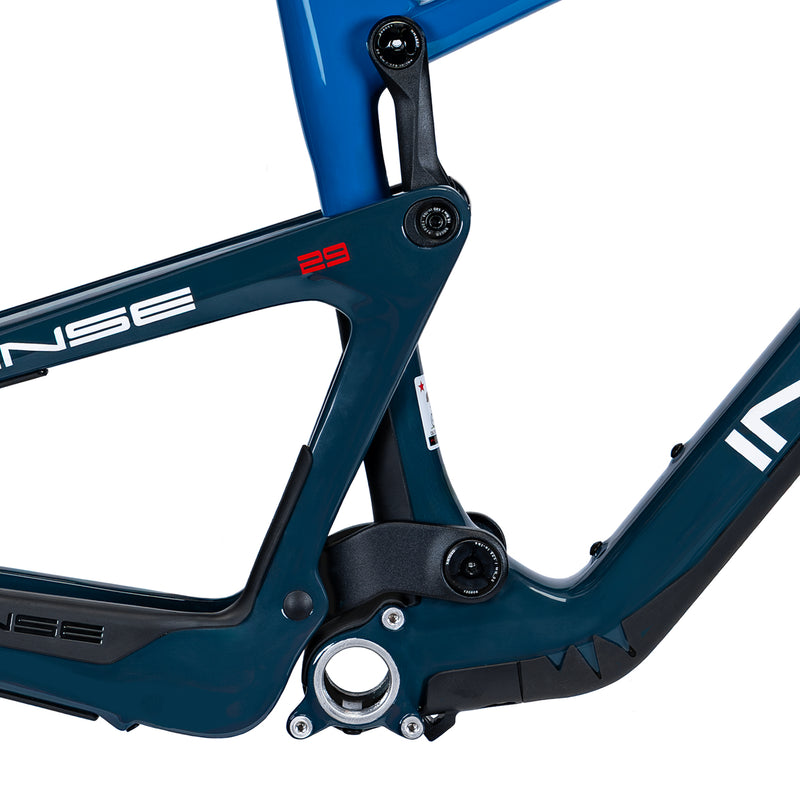

JS TUNED LINK SYSTEM

The JS Tuned Trail Link delivers an incredibly smooth ride across mixed terrain, combining excellent pedaling efficiency with supportive climbing performance. Complementing the suspension design, the redesigned external top link is now wider to increase frame stiffness, creating a more responsive and confident ride on the trail.

INTERNAL CABLE ROUTING

Fully internal cable routing keeps the frame clean, organized, and quiet while protecting your cables from wear and the elements.

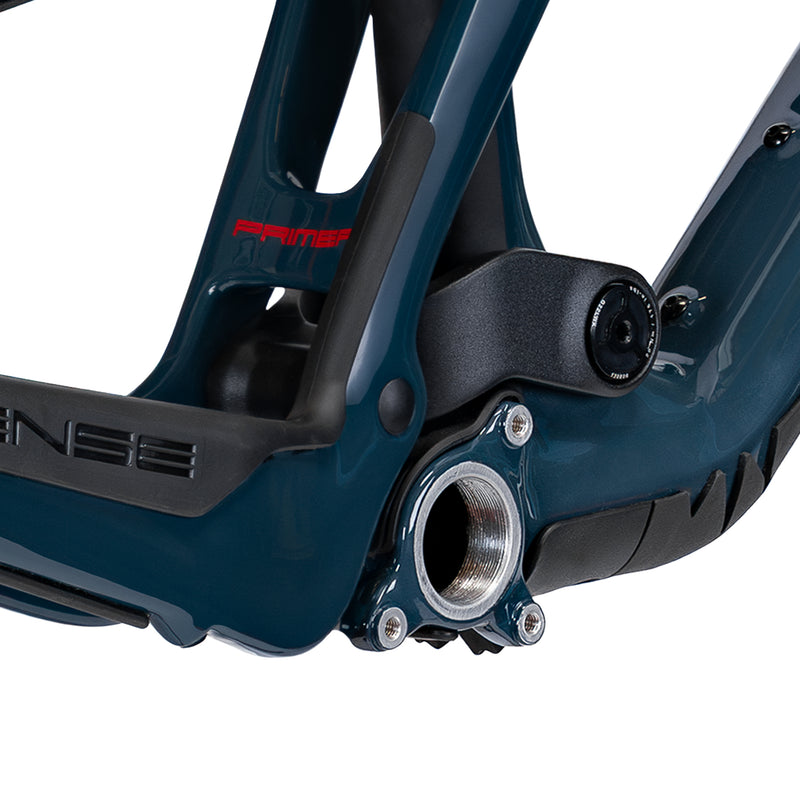

THREADED BB

Fully internal cable routing keeps the frame clean, organized, and quiet while protecting your cables from wear and the elements.

FRAME PROTECTION

Integrated frame protection keeps the front and rear triangle looking new.

CARBON FIT

The Primer's carbon layup is optimized for each frame size to deliver the ideal balance of stiffness, strength, and compliance for riders of all sizes. This ensures consistent responsiveness and performance.

UDH & T-Type Compatibility

The frame comes with a Universal Derailleur Hanger (UDH) for improved alignment and easy replacement, and it fully supports SRAM's T-Type drivetrain systems for enhanced performance and durability.

Click for Geometry And Size Chart
