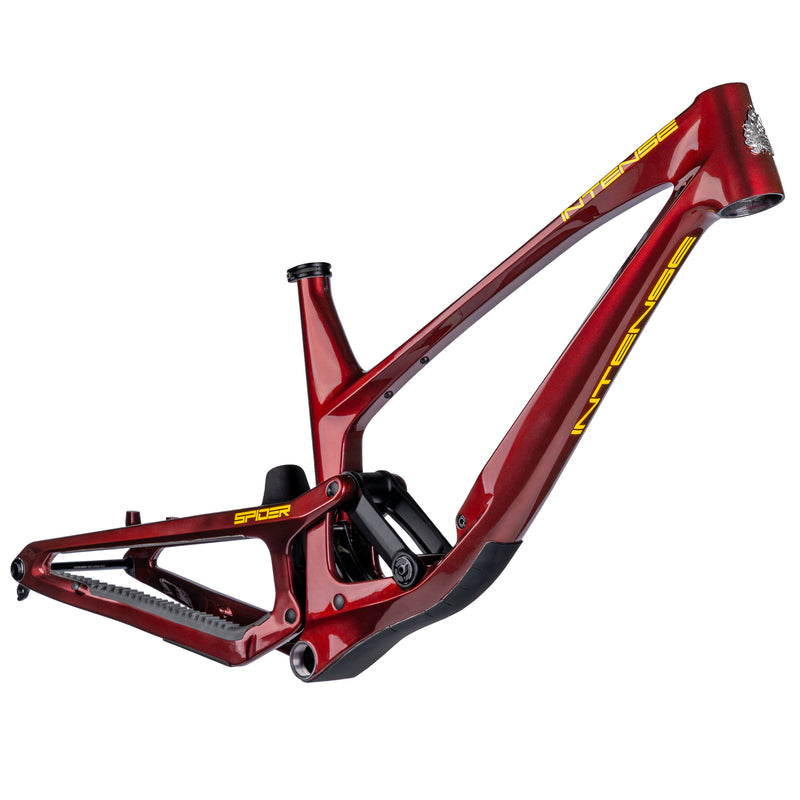

2027 Intense Spider Frameset

The all-new Spider is built for modern trail riding: fast, efficient, and strikingly precise on technical terrain.

With 130mm of travel front and rear on a full 29" platform, it delivers the perfect balance of pedaling efficiency and trail capability. The new Dual Co-Rotating Link (DCR) suspension system maximizes traction and control while modern geometry keeps the Spider composed when the trail gets rough.

Frame Specifixations And Capabilities

• Model Year: 2026
• Category: Trail
• Available Sizes: S, M, L, XL
• Available Colors: Oxblood Red, Satin Gray, & Chalk White
• Frame Weight (No Shock): (S) 5 lbs 12 oz / 2.61 kg | (M) 6 lbs / 2.72 kg | (L) 6 lbs 3 oz / 2.80 kg | (XL) 6 lbs 6 oz / 2.89 kg
• Headset: ZS44 Upper / ZS56 Lower
• Seattube Diameter: 31.6mm
• Seatpost Clamp: 36.4mm
• Max Seatpost Insertion Depth: (S) 215mm | (M) 250mm | (L) 275mm | (XL) 300mm
• BB Shell Width: BSA 73mm
• Rear Hub Spacing: 148mm x 12mm Thru-Axle Boost
• Max Front Travel: 130mm
• Max Rear Travel: 130mm
• Non-Compatible Shocks: All Coils | FOX Live Valve, X2 | RockShox Flight Attendant, Vivid Air
• Shock Size: 210mm x 50mm
• Front Shock Mount Hardware: 8mm x 30mm
• Rear Shock Mount Hardware: 8mm x 20mm
• Max Chainring: 34T
• Chainline: 52mm Shimano 12S | 52mm SRAM Eagle 12S | 55mm SRAM T-Type 12S
• Derailleur Hanger: UDH
• T-Type Compatible: Yes
• Recommended Max Tire Width: 2.5"
• Brakes: Disc Brake Hydraulic, Post Mount / Direct
• Min Rotor Size: 180mm
• Max Rotor Size: 203mm (with adapter)

Frame And Shock Specifications

Frame

• Material: Size-Specific Carbon Layup
• Wheel Size: Full 29” Platform
• Front/Rear Travel: 130mm / 130mm
• Derailleur Hanger: UDH
• T-Type Compatible: Yes
• Cable Routing: Fully guided internal
• Bottom Bracket: Threaded BSA
• Accessory Mount: Integrated mount under top tube
• Frame Protection: Custom molded protection
• Rear Fender: Integrated

RockShox Deluxe Ultimate Shock

• Damper: Ultimate
• Spring: DebonAir+ Linear XL Air Can
• Adjustments: Low-Speed Compression / Low-Speed Rebound
• Modes: Open / Firm / Lock
• Bottom-Out: Adjustable bottom-out system
• Tune: Custom
• Eye-to-Eye/Stroke: 210mm x 50mm
• Mounting Hardware: Front 8mm x 30mm / Rear 8mm x 20mm

FOX Float Factory Shock

• Damper: FOX Float Factory inline damper
• Spring: EVOL LV Air Spring
• Adjustments: Rebound
• Modes: 2-position lever
• Bottom-Out: MCU bottom-out bumper
• Tune: Custom
• Finish: Kashima Coating
• Eye-to-Eye/Stroke: 210mm x 50mm
• Mounting Hardware: Front 8mm x 30mm / Rear 8mm x 20mm

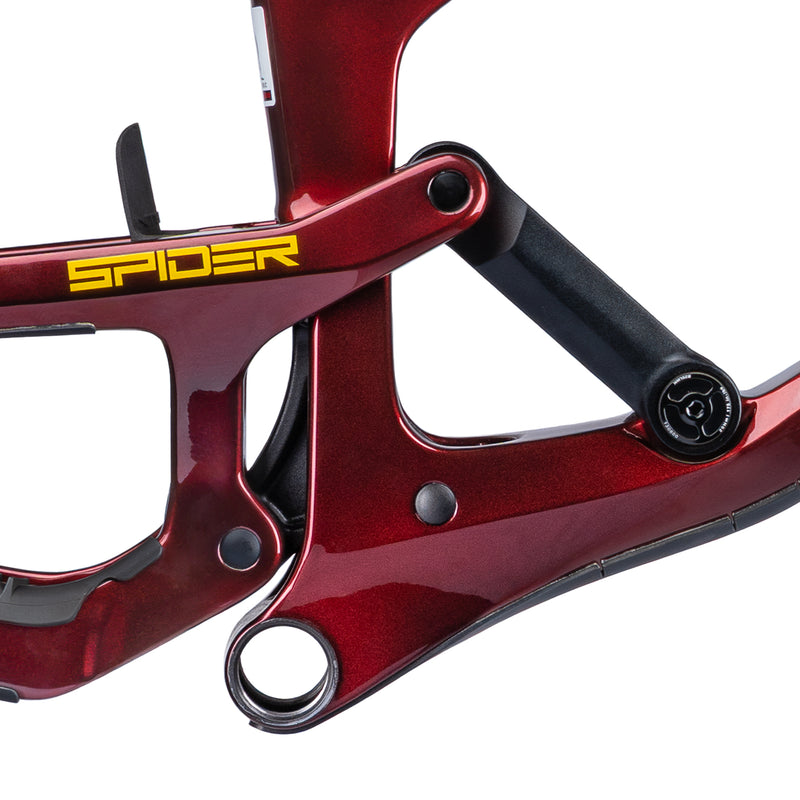

Dual Co-Rotating Link Suspension

Our Dual Co-Rotating Link (DCR) suspension keeps the chassis low, calm, and planted, so the bike tracks the ground and gives you incredible cornering traction, yet still feels playful, and highly active when you push into the trail.

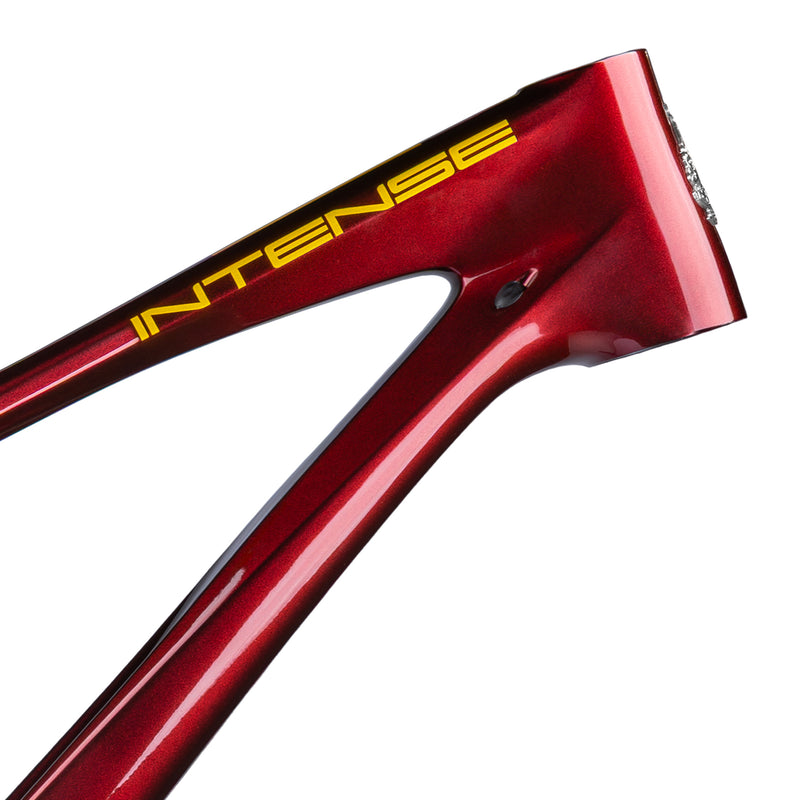

Internal Cable Routing

Fully internal cable routing keeps the frame clean, organized, and quiet while protecting your cables from wear and the elements.

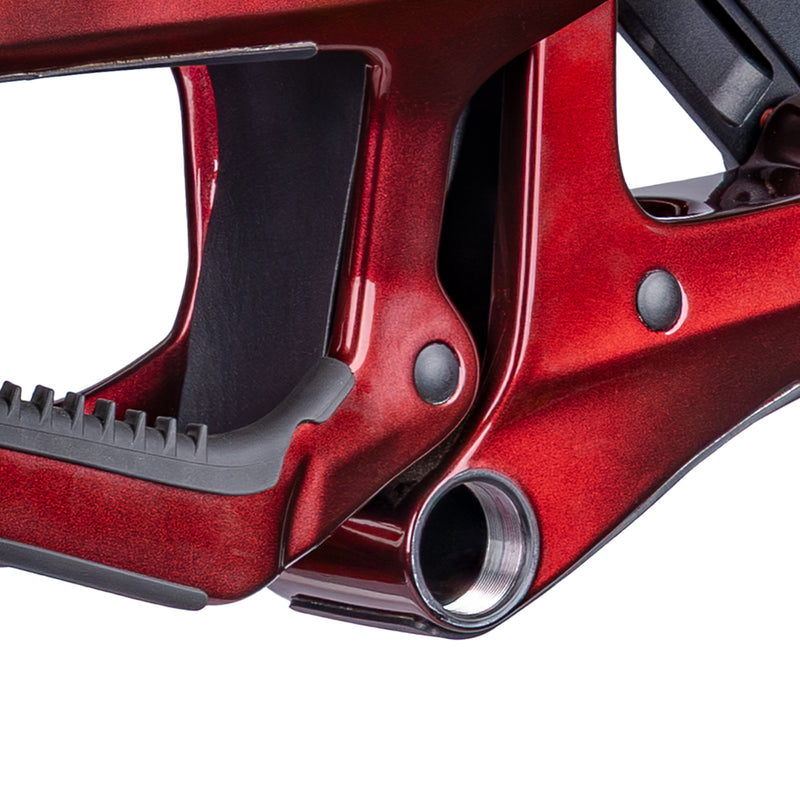

Threaded BB

The Spider's threaded bottom bracket is the preferred choice for maintenance-minded riders, offering reliable, creak-free performance over the long haul.

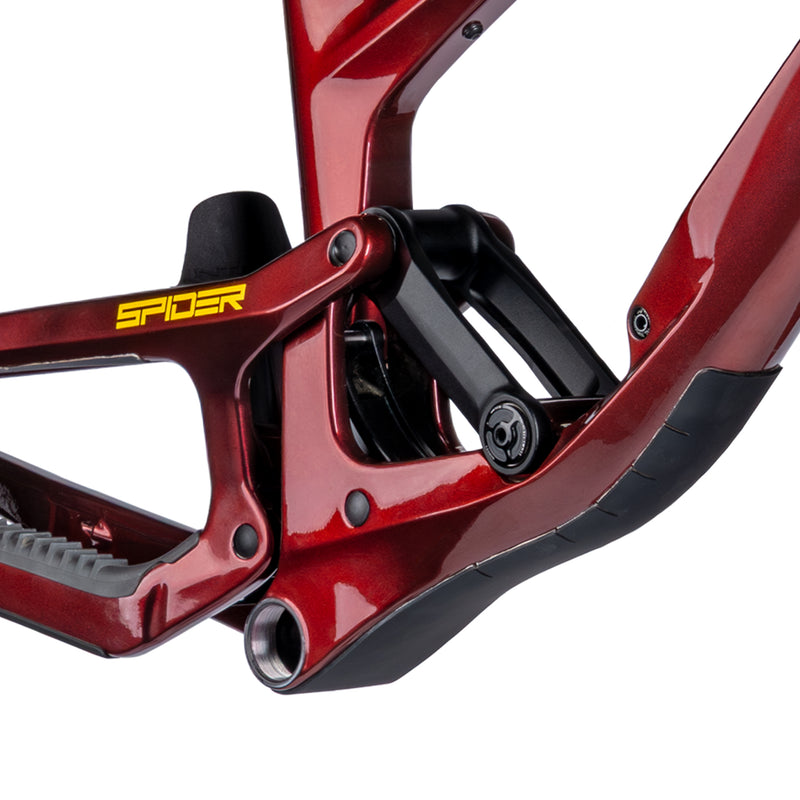

FRAME PROTECTION

Integrated frame protection keeps the front and rear triangle looking new, while a built-in rear fender helps shield the shock from dirt and debris.

Carbon Fit

The Spider's carbon layup is optimized for each frame size to deliver the ideal balance of stiffness, strength, and compliance for riders of all sizes. This ensures consistent responsiveness and performance across the entire size range.

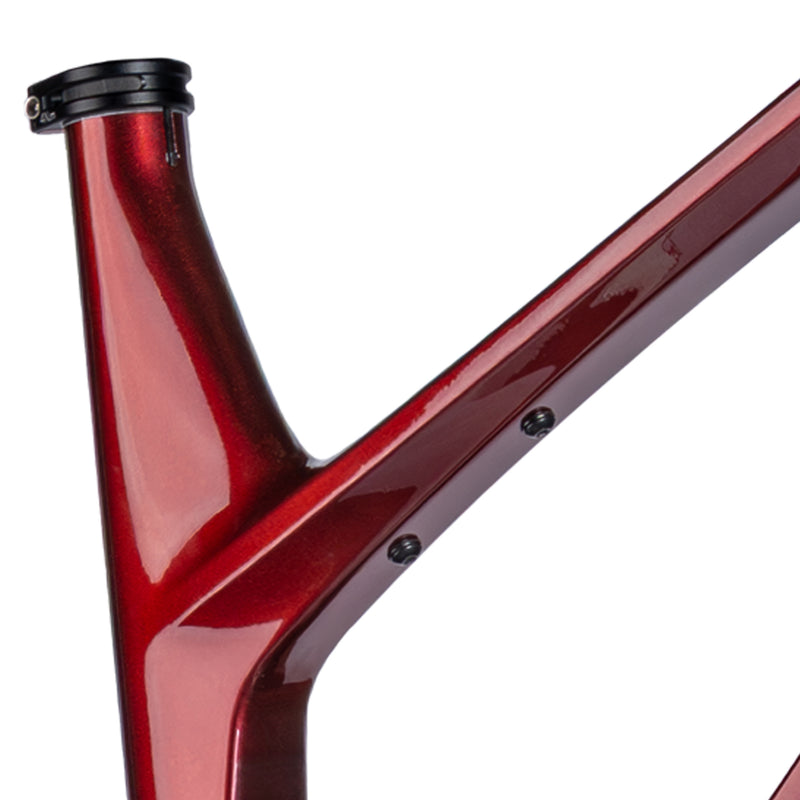

Accessory Mount

An integrated accessory mount under the top tube gives you a secure place to carry tools, air canisters, tire irons, and other essentials.
