2026 Salsa Notch C GX Eagle Transmission - Black/Walnut

Soaring climbs, daunting descents, techy trail features: Notch C is unshakeable. In fact, it wants more. Bosch's latest Performance Line CX drive unit and 625Wh battery help you keep up with Notch's trail appetite. Notch C is built on a high-modulus carbon fiber frame to shave weight and grant you the stiffness to stick to your line. Enduro-focused geometry delivers a stable ride on rowdy terrain, backed by 170mm of supportive, efficient Split Pivot rear suspension travel and a 180mm fork. And with a dedicated space for your spare tube, multi-tool, and a bottle (or range-extender battery), this carbon eMTB is equipped for tremendous trail days. SRAM's GX Eagle Transmission drivetrain adds accurate, near-instant shifts and a durable design so you can focus on the trail. Saddle up with Notch C and charge your adventure.

• Meets UL 2849, and UL 2271 certification

Features

Electric Assist

• It makes more rides possible
• It gives riders the confidence to extend their range
• It's FUN

On-Bike Storage

• Adventures require gear and riders should get to choose whether they carry it on their bike or on their body

Split Pivot Suspension System

• Allows us to tune the pedaling and braking forces independently
• Maximizes pedaling and braking performance without compromising either
• Results in optimal pedaling efficiency and traction when braking

Split Pivot +

• Multiple travel classes in one chassis provides riders with the opportunity to adapt their bikes to various adventures

Flip Chip

• Provides the ability to alternate wheel and tire sizes
• Riders can adjust for their terrain, or desired handling characteristics

Frame Protection

• Our products are built from experience - we've been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.

Frame Specs

• Design Wheel/Tire Sizes 29 x 2.2-2.6" (55-66mm)
• Alternate Wheel/Tire Sizes 27.5 x 2.6-2.8" (66-71mm) **rear only in H flip chip setting with 160mm fork and crank arms ≤165mm
• Max Tire Outer Diameter Frame: 29 x 2.6"
  Fork: Max Tire Diameter 770mm / Max Tire Width 81mm
• Frame Construction Carbon
• Suspension Fork Length (Travel) 570-606mm (up to 190mm travel single crown fork / 200mm travel dual crown fork)
• Fork Offset 44mm
• Rear Spacing 12 x 148mm
• Rear Axle Size 12 x 188mm, TP=1.0, TL=13
• Rear Brake (Rotor) 74mm post-mount (ø200-220mm)
• Front Brake (Rotor) 74mm post-mount (ø200-220mm)
• Headset - Upper ZS56/28.6
• Headset - Lower ZS66/46
• Rear Shock Size 225 x 70mm
• Pivot Kit Salsa Notch Flip Chip Kit: Flip Chip Pair And Lower Shock Bolt - 3744
  Salsa Short Travel Shock Link Assembly: Shock Link Assembly For Notch 205Mm Shock Short Travel - 2207
  Salsa Control Link Pivot Spacer Kit:ø15 X ø20 X 5 Pivot Spacer, Pair - 4032
  Salsa Trunnion Pivot Bolt Kit: M10X1.0, 18L, Trunnion Bolt, Pair - 3738
  Salsa Trunnion Pivot Spacer Kit: ø10 X ø14.5 X 3 Pivot Spacer, Pair - 4029
  Salsa Link Pivot Bolt Kit: M12X1.25, 24L, Link Pivot Bolt - 3731
  Salsa Main Pivot Spacer Kit: ø17 X ø23 X 3 Main Pivot Spacers - 4033
  Salsa Main Pivot Kit: Main Pivot Pin And Bearing Spacer Sleeve - 3739
  Salsa Main Pivot Spacer Kit: ø17 X ø23 X 3 Main Pivot Spacers - 4033
• Front Spacing 15 x 110mm
• Front Axle Size Maxle Stealth: 15 x 110mm, TP=M15x1.5, TL=9mm, 158mm overall length
• Steerer Tube 1.125-1.8" tapered
• Crown Race 69mm
• Stem Clamp 35.4mm
• Seatpost 30.9mm
• Dropper Post Compatible Yes (internal)
• Derailluer Hanger SRAM UDH
• Bearings MR20307 LLB, Max Fill, Cartridge Bearing (20 X 30 X 7) X 2
  3801V, 2Rs, Double Row, Max Fill, Cartridge Bearing (12 X 21 X 7) X 2
  3802V, 2Rs, Double Row, Max Fill, Cartridge Bearing (15 X 24 X 7) X 2
  3800V, 2Rs, Double Row, Max Fill, Cartridge Bearing (10 X 19 X 7) X 2
  3803V, 2Rs, Double Row, Max Fill, Cartridge Bearing (17 X 26 X 10) X 2
• Bottom Bracket Bosch BDU38
• Crankset (Max Ring) 36t
• Accessory Mounts Top Tube (underside) Accessory Mounts: 1
• Bottle Mounts Frame: 1 full size bottle

Additional Features

Carbon Fiber Frame

Notch C features a high-modulus carbon fiber frame for reduced weight and improved stiffness

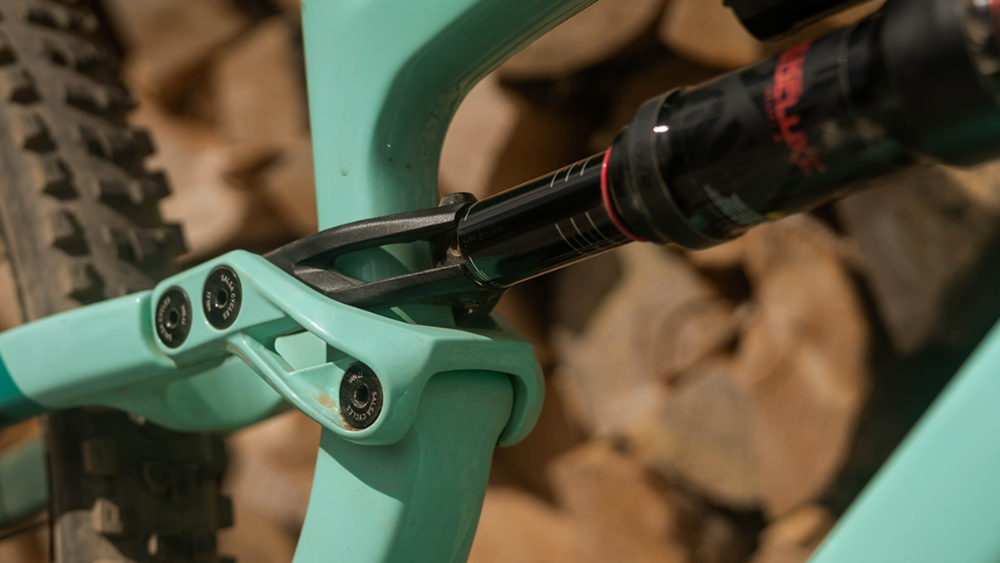

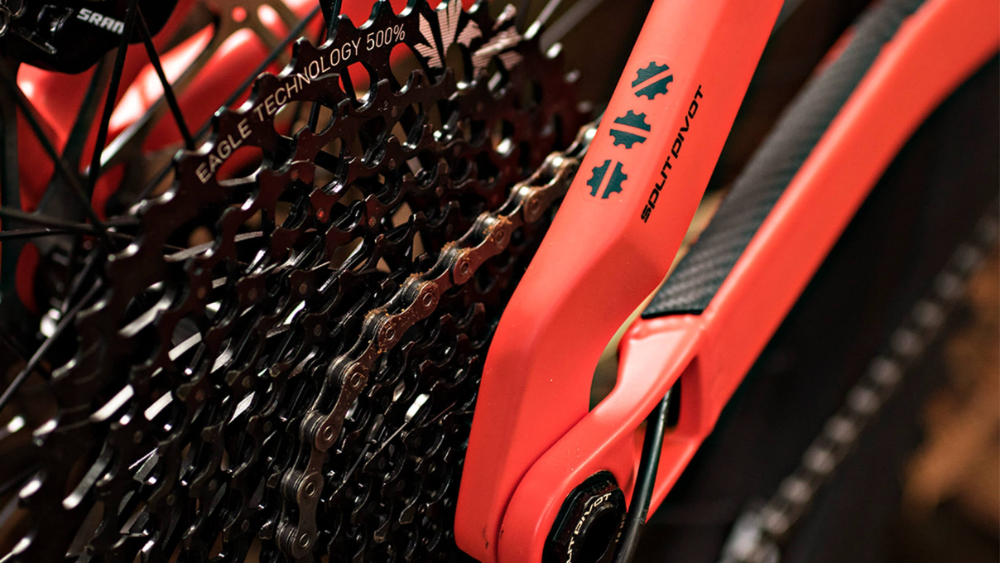

Split Pivot Rear Suspension

Split Pivot provides a host of impressive suspension characteristics because the system isolates pedaling forces and braking forces from each other, allowing us to tune and optimize the bike for both independently. The concentric rear axle pivot, in conjunction with precise wheel link, brake link, and control link placement, results in excellent bump compliance and pedaling efficiency, smooth and predictable braking throughout travel, and maximum traction.

Split Pivot+ Design Methodology

The Split Pivot+ design methodology allows our engineers to optimize a frame for more than one travel class. This means you can swap control and shock links, in addition to the rear shock and fork, for more or less travel. You can set up Notch for 160-180mm of rear travel and a 160-190mm fork (up to 200mm travel with dual-crown fork). One frame, multiple bikes.

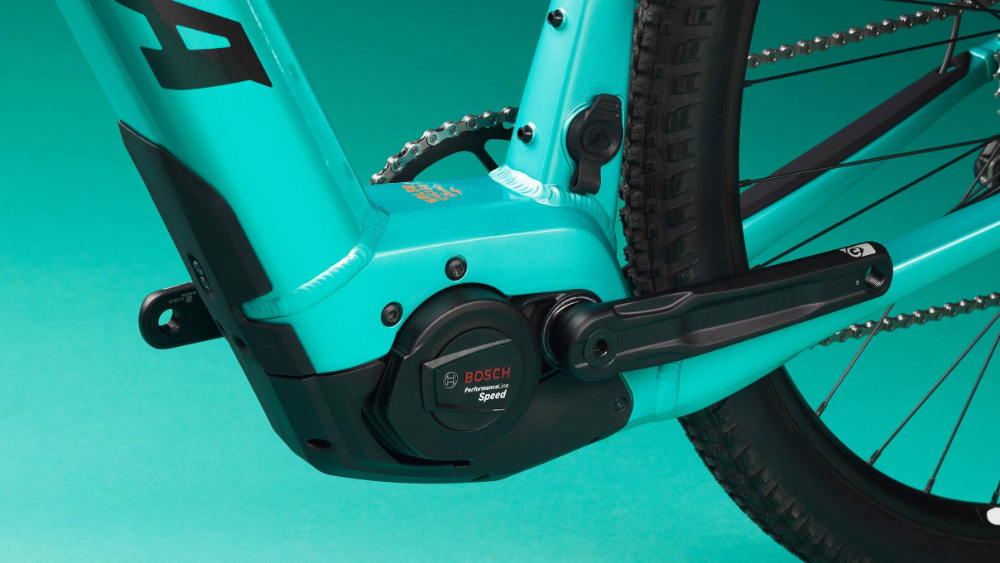

Bosch Performance Line CX Drive System

Notch runs on Bosch's latest Performance Line CX drive unit (BDU38) with smart system. This is a class 1 motor that delivers electric assist up to 20 mph/32 kph. The Performance Line CX comes packed with features you'll appreciate out on the trail: an eMTB tune with loads of torque, Smart Walk Assist for pushing up steep tracks, and Hill Hold to prevent rollback. This mid-drive setup also keeps the motor's weight low and centered on the bike for neutral handling.

85Nm max torque

The Bosch Performance Line CX system delivers up to 85Nm of assist, with four customizable assist levels and an integrated speed sensor to control torque output.

625Wh internal battery

The Bosch PowerTube 625 battery offers plenty of range so you can hit lap after lap. It's also fully encased in the downtube for added stiffness and a nice, clean look.

Flip Chip

Easily adjust Notch's bottom bracket height (7.5mm) and head tube angle (0.5 degrees) to suit your preferences, terrain, or wheel and tire size.

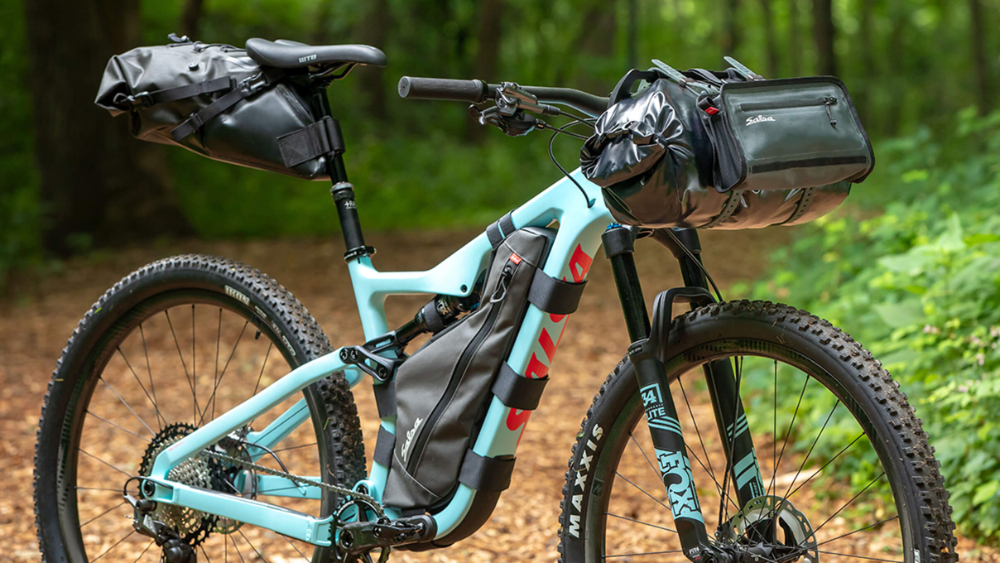

On-bike Cargo

Notch gives you a dedicated spot in the frame for your bottle, multi-tool, and spare tube so you can leave your hip pack at home.

Internal Routing

Internal routing for dropper and shift cable housing and brake hoses gives Notch a clean look and helps keep cables from catching on the trail.

29 x 2.6? Tire Clearance

Hold your line on steep, loose terrain with clearance for large tires.

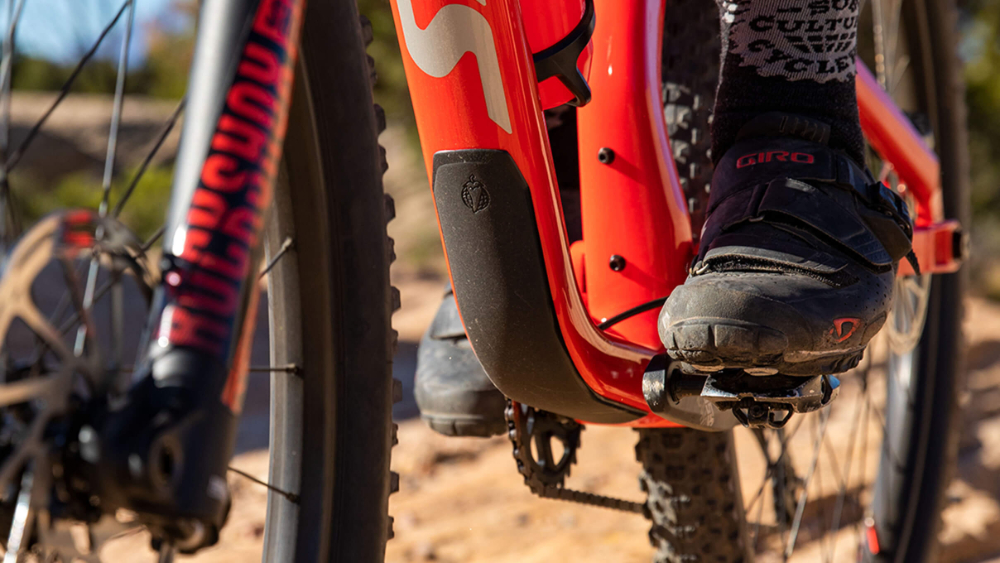

Molded Frame Protection

Take the “ding” out of riding with durable, custom-fit frame protection pieces in high-wear and damage-prone areas.

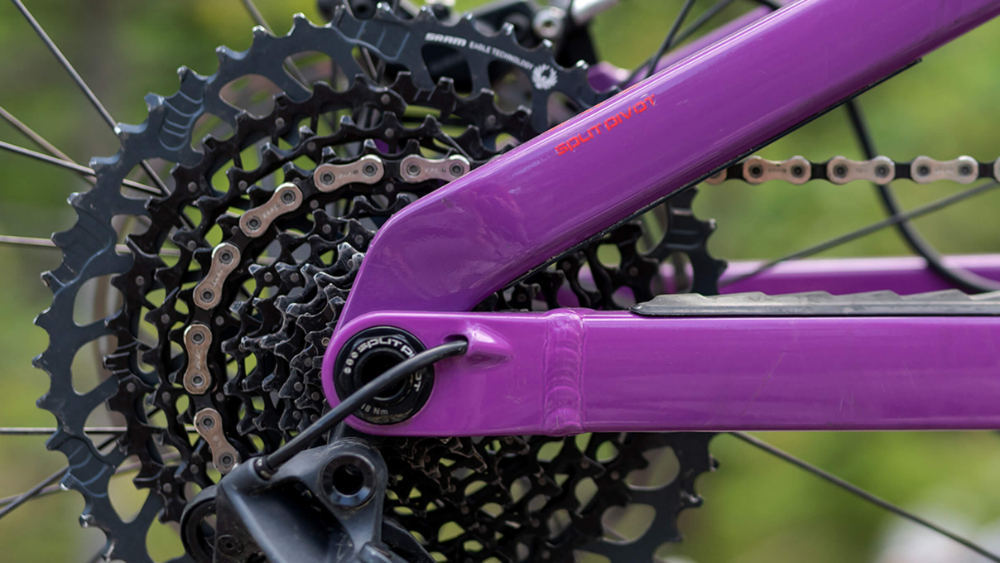

SRAM UDH Compatible

This derailleur hanger design optimizes shifting performance and makes it much easier to replace a bent or broken hanger.

Click for Geometrical Chart

Click for Build Kit

Click for Salsa Notch Carbon Manual

Click for Bicycle Owner's Manual

Click for ASTM Riding Conditions Classifications

Click for ASTM 4 Framesheet

Click for Control Link Pivot Type 3 Instructions

Click for Link Hardware Kit 3731 Instructions

Click for Shock Mount Hardware Type 2

Click for Suspension Frame Service - Main Pivot (2-Bolt) Type 1 Instructions

Click for Suspension Frame Service - Rear Axle Pivot Type 2 and SRAM UDH
